Keterangan
Standard Features

12 Channel, Parallel Tracking GPS Receiver with WAAS technology, DGPS Ready
Up to 900 Knot Tracking Velocity
20 Second Warm Start Acquisition
1-3M Accuracy ( 95% of the time with WAAS on and SA off)

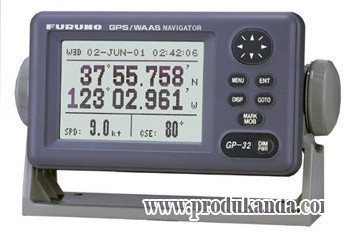

4.5 Inch Diagonal Monochrome High Contrast Silver Bright LCD Screen
Waypoint and Route Data Transfer Via PC to another GP32
5 Display Modes available
1. Plotter - 14 Plot Scales from 0.2 - 320 N.M.
2. NavData - Position Indication in Lat./ Long or Loran-C TD' s
3. Steering - Graphic Vessel Course, Position and Speed Information
4. Highway - 8 Range Scales from 0.2 - 16 N.M.
5. Analog or Digital Display Speedometer
6. Two user customizable displays
Man Overboard Key
Waypoint entry by Loran-C TD' s ( Highway Mode)
Alarms for Arrival, XTE, Anchor Watch and High/ Low Speed Points
Memory Capacity: 1000 Points of Vessel Track, 999 Points for Waypoints
and Marks, and 50 Routes comprised of up to 30 Waypoints
Waypoint Comments of up to 16 Characters
Event Marks Entered using one of Nine Symbols
2 Data Ports for both RS422 and RS232
Feed nav data to radar, chart plotter, autopilot or sounder through NMEA0183 port
Upload/ Download waypoints and routes directly from NavNet display
Built in Simulator for Showroom Display and Training

Shipping Information

5 Lbs., 1 Carton

Power Requirements

12 or 24 VDC, 3 Watts
